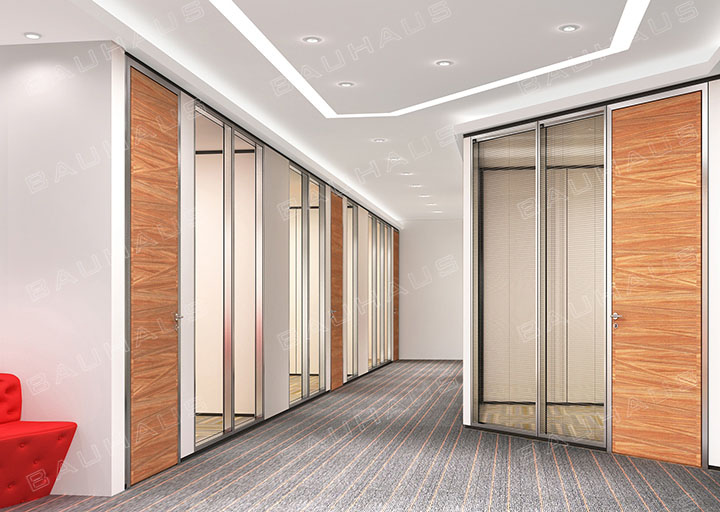

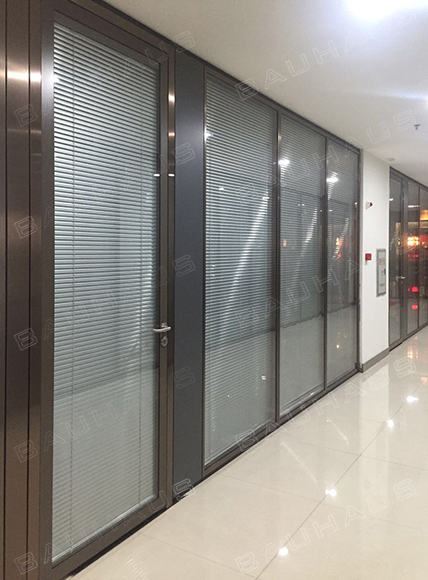

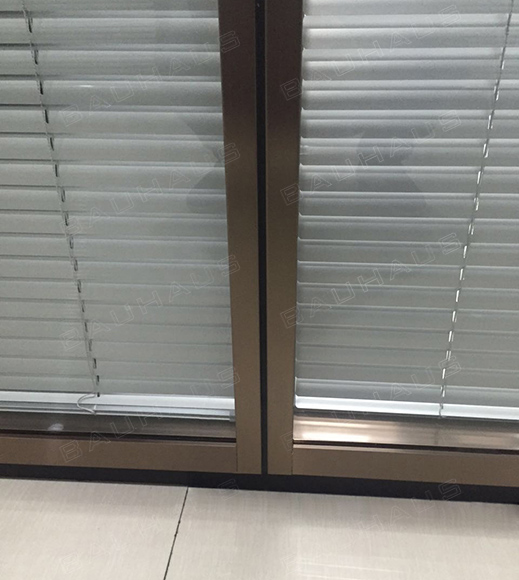

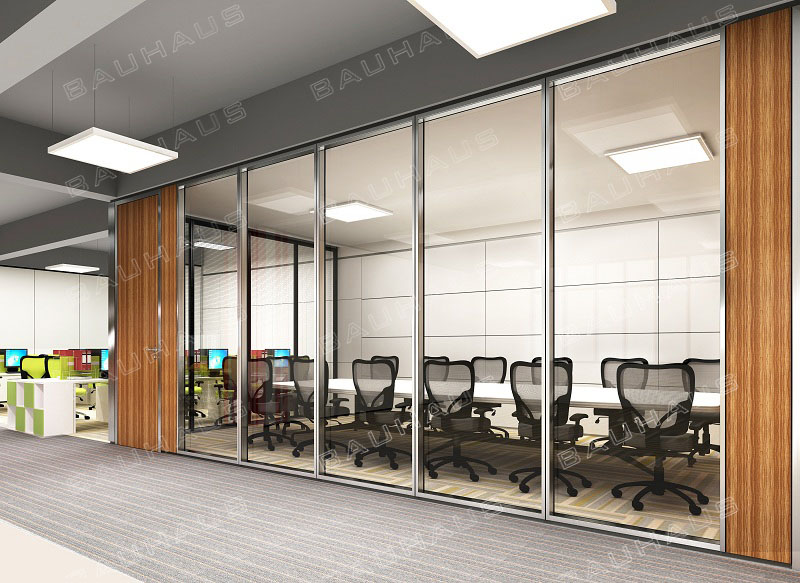

Stainless steel double glass partition
- Details
Wall structure: stainless steel system
Wall appearance: wall thickness 100mm, upper rail height 25mm, lower rail height 40mm, glass frame width 25mm, module spacing 6mm.
Glass assembly: safety or fireproof glass with a thickness of 5 or 6 mm
Fire endurance: EI120min
Impact strength: 1000Nm
Sound insulation load: 48dB-55dB
Suggestion: In order to achieve better sound insulation effect, it is best to arrange different thickness of glass on the front and back sides. The area of single glass is not more than 3m2. At the same time, it should consider adding unnecessary cost during transportation.
Wall appearance: wall thickness 100mm, upper rail height 25mm, lower rail height 40mm, glass frame width 25mm, module spacing 6mm.
Glass assembly: safety or fireproof glass with a thickness of 5 or 6 mm
Fire endurance: EI120min
Impact strength: 1000Nm
Sound insulation load: 48dB-55dB
Suggestion: In order to achieve better sound insulation effect, it is best to arrange different thickness of glass on the front and back sides. The area of single glass is not more than 3m2. At the same time, it should consider adding unnecessary cost during transportation.
